Description

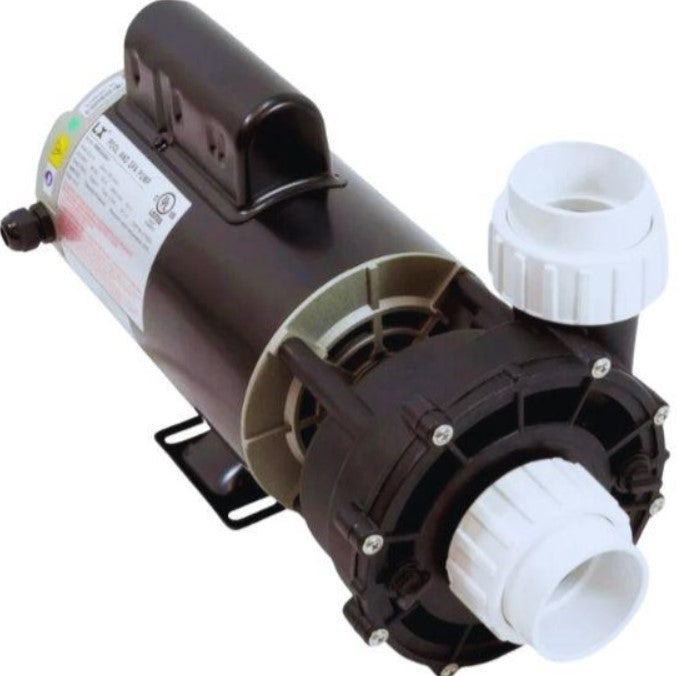

56WUA400-I LX Spa Pump, 4.0HP, 1-SP, 56FR, 230V, 12.0
56WUA400-I LX Pump is a great replacement for Waterway ® Executive (4.0 Horsepower, 56 frame) Pump and others. This is a 1-speed pump, 12.0 Amps, with 2″ inlet, 2″ discharge (side discharge).
It also replaces Jacuzzi/Sundance ® Theramax 6500-902
Features:
- Quiet operation
- Includes unions (O-rings sold separately)
Product specifications:
- Voltage: 230V
- Frequency: 60Hz
- Amperage: 12.0
- Frame Rate: 56Y
- Horsepower: 4
- Motor Speed: 1-Speed
- Inlet / Outlet: 3″ OD
- Discharge Type: Side
- Front Face Plate: 7-1/2″ (Outside Dimension)
Technical and Installation:
- Pump is manufactured in the wet-end orientation shown, but you can simply rotate you wet end to match your spa plumbing, if needed.
- Pump is manufactured without a pump amp cord. You will need to use your existing pump amp cord or purchase a new one.
- Please see How to Wire a Spa Pump to wire the pump amp cord.
- Can use the following gaskets/orings:
- 2″ Pump Union O-Ring 805-0230 (6000-645)
- 711-4010 Waterway Heater Flat Gasket
- 21619 Balboa ® | Heater Coupling Gasket 2″
Also known as HydroMaster BX4117-S2, 56WUA400-2/6
SKU: 56WUA400-I
MPN: 56WUA400-I
UPC: 600358155455
Manufacturer: Guangdong Lingxiao Pump Industry Co., Ltd. (LX)
Warranty directly with manufacturer.
———————————–
