Description

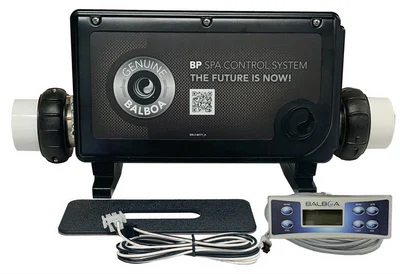

The Balboa BP100 retro fit kit 50-BP1-500-55-K includes the TP500 control panel and template that can be used to cover a larger hole in spa shell as needed.
This control system has M7 technology equipped with built-in sensors inside the 5.5kw flow through heater at bottom of control pack.
This BP100 control system operates a 1 or 2 speed pump1, a 1 speed pump2 OR a 1 speed blower.
A circ pump is supported with this kit.
When programmed for Circ pump, Pump 1 is single speed only.
Featuring a 5.5 kilowatt fixed heater.
Includes a TP500 topside control panel with a 6 button overlay.
The overlay buttons are Warm, Cool, Menu, Jets, Light, Aux.
Standard Features
5.5kW Fixed Heater Assembly
TP500 Topside with Adapter Plate Included
12V Light Assembly
All Circuits Convertible to 120 or 240VAC
120V/240V 4-Wire or 240V 3-Wire Capable
Wi-Fi (BWA), Module Compatible. Sold separately
Bluetooth Audio (bba) Compatible. Sold separately
Control My Spa (CMS ) Compatible. Sold separately
USA and Canada UL Recognized
If replacing old/discontinued control system by Vita Spa like ones that used LC700, then select from the 4x available BP100 kits depending on if fixed or remote heater is needed and if heater should be 4kw or 5.5kw:
50-BP1-500-40-K BP100 Retrofit Kit with 4kw FIXED Heater and TP500 control panel
50-BP1-500-4R-K BP100 Retrofit Kit with 4kw REMOTE Heater and TP500 control panel
50-BP1-500-55-K BP100 Retrofit Kit with 5.5kw FIXED Heater and TP500 control panel (this kit)
50-BP1-500-5R-K BP100 Retrofit Kit with 5.5kw REMOTE Heater and TP500 control panel
