Description

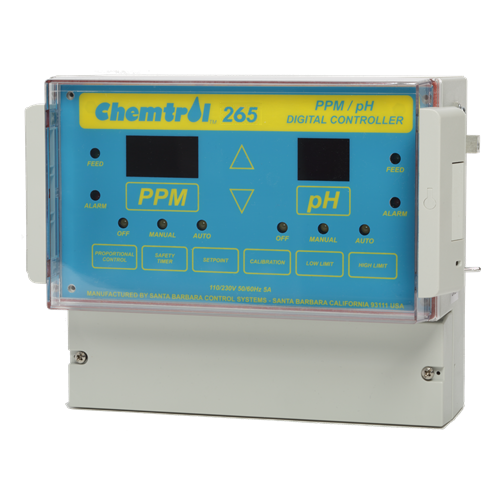

The CHEMTROL® CH265 is a workhorse controller built to lock in safe, clear water with direct free-chlorine (ppm) and pH control—no colorimetric reagents, no membranes, and minimal routine upkeep. A solid-state free-chlorine sensor provides continuous ppm readings (typ. 0–10 ppm; low-range options available) while a dedicated pH channel spans the full pool chemistry range, giving you stable setpoints in real time. For dosing, the CH265 offers manual, automatic, and proportional feed modes with relay outputs to drive chemical pumps/valves, plus 4–20 mA signal output for integration with PID loops, data loggers, or BMS/SCADA. Built-in safety includes overfeed/runtime alarms and remote dry-contact alarm, so operators get clear fault signaling before issues become downtime.
In practice, that means fewer site visits and tighter water quality—ideal for commercial pools, spas, health clubs, and municipal facilities where bather load and regulations demand precision. Operators can tune chlorine and pH setpoints to local codes, use the analog output to coordinate with peristaltic feed pumps, and rely on the front-panel calibration/readouts for quick verification. The “no-reagents” chlorine measurement reduces consumables and operator error, while the controller’s clear front panel and serviceable I/O make it straightforward to install, scale, and maintain.
- No Reagents
- No Maintenance
- No Pressure Regulator.
- Free CL Range 0.00 to 10.0 PPM
- pH Range 0.0 – 14.0
- Programmable 4-20 mA output to PID and/or Chart Recorder
- Programmable 4-20 mA Output Control with Adjustable Setpoint
- Dry Contact Remote Alarm
