Description

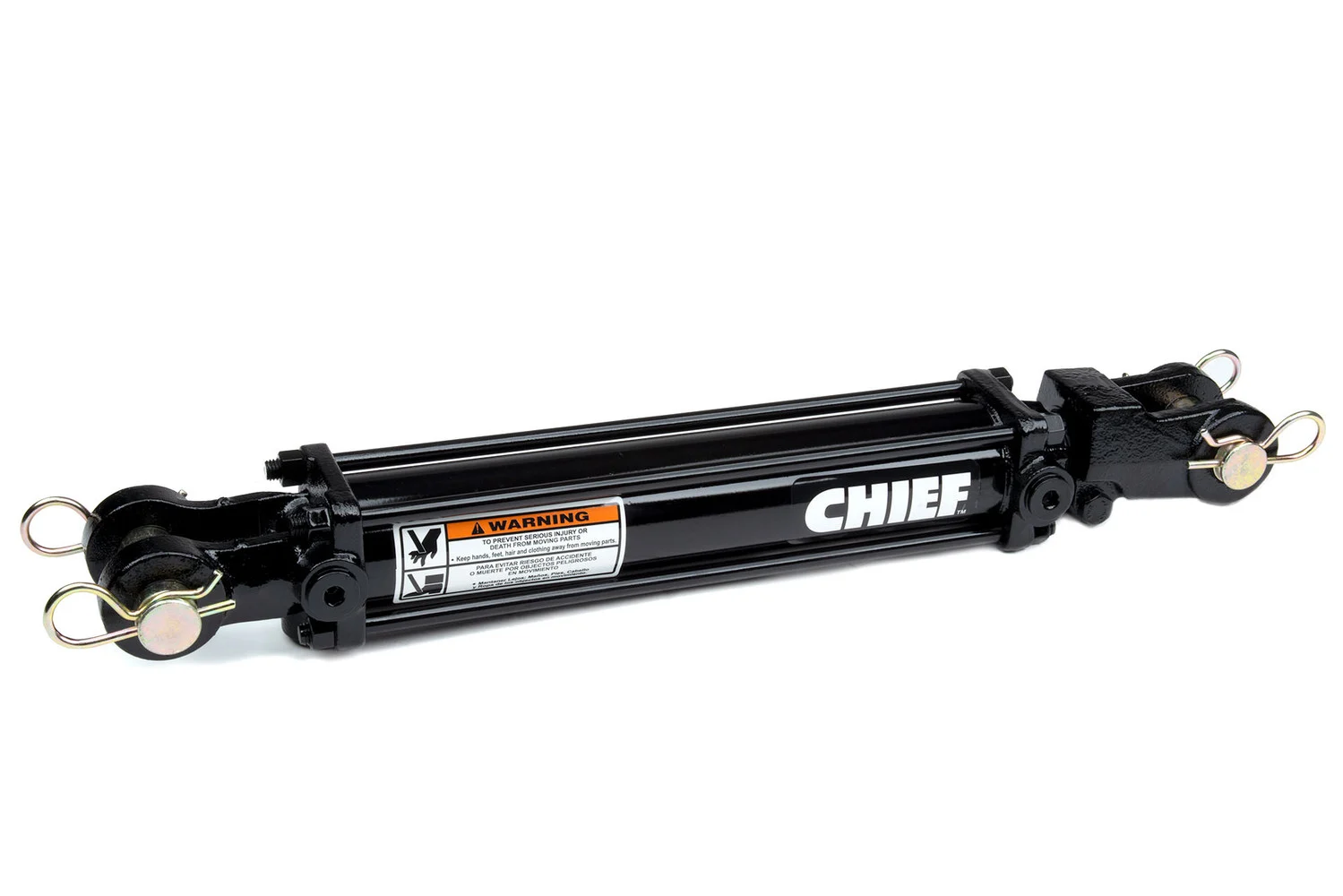

This 2.5 in bore x 48 in stroke, 3000 psi Chief TC3 tie-rod hydraulic cylinder is designed to provide outstanding performance in a variety of applications, including agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications.
Featuring SAE O-ring ports for easy hookup, every Chief TC3 cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability. The Chief TC3 comes with a 3-year limited warranty.
Each cylinder comes painted black.
Specifications:
Bore: 2.5 in
Stroke: 48 in
PSI: 3000
Retracted: 58.25 in
Pin Diameter: 1 in
Rod Diameter: 1.25 in
Extended: 106.25 in
Column Load: 2430 lbs
Port Size: SAE 8
Brand: Chief
