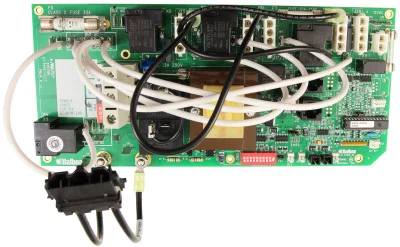

Circuit Board Balboa VS501Z Duplex Digital 8 Pin Phone Cable with Circ Option G1152.
G1152-01 can also replace 54604-01 and other versions of 54604 as used by Coast Spas and other brand hot tubs.
New VS Boards will include a Balboa 25696 Plug’n’Click Adapter will require new heater or 25263 adaptor for existing heater. Removing copper strap will be required to complete the installation.
S501Z Circuit Board G1152SPECIFICATIONSVoltage: 115v / 230vPower Requirements: 115 or 230 VAC, 60Hz. GFCI Protected Service (3 Wire 115v, 4 Wire 230v)Neutral Required: YesCircuit Breaker Rating_ 20A (115v) & 50A (230v)System Series: Balboa VSConfiguration: 1-2 Pumps & Additional Circulation Pump (High Flow Only). Ozone, 12v LightFEATURESPump 1 Dual SpeedPump 2 Single Speed Or Single Speed Blower (Must not exceed 12 amps.)High Flow Single Speed Circulation PumpOzone (If Circulation Pump is Used, Ozone and Circulation Pump Must be the Same Voltage)12v LightA/V Connection (120v or 230v)
IMPORTANTPump 2 MUST be 230v, and MUST NOT exceed 12 amps. Installing a Pump 2 that exceeds 12 amps can cause damage and possibly Fire.If your Pump 2 is either (120v), or (230v and over 12 amps), DO NOT purchase this circuit board.
Also Replaces 54357HQ002233-0032BKEYS100CRVS501ZR1VS501ZR2B54604-015436954604
