Description

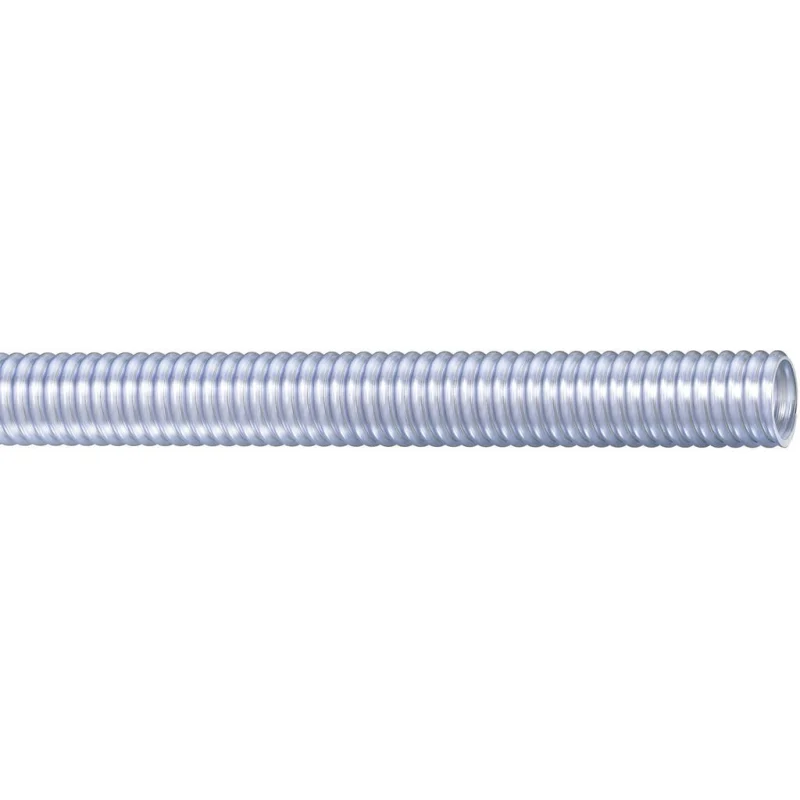

The CONTINENTAL CONTITECH 20013339 is a clear PVC food and beverage transfer hose designed for sanitary fluid handling in food processing, beverage dispensing, and light industrial applications. It measures 1-1/4 inches inside diameter with a 1.59-inch outside diameter and comes in a 100-foot length. The hose is rated for a maximum working pressure of 50 psi and a vacuum rating of 29 inHg, making it suitable for both pressure and suction service. Operating temperature range spans -15 degrees F to 158 degrees F. Licensed plumbers, food equipment installers, and maintenance technicians typically handle installation in commercial food service and processing environments.
This hose is intended for use in food and beverage transfer lines where sanitary compliance is required. Its clear construction allows visual flow monitoring, which is useful in bottling, dairy, brewing, and general food processing installations. The 100-foot length provides flexibility for routing in production facilities and commercial kitchens. The 3-inch minimum bend radius should be observed to maintain flow integrity and avoid kinking during installation or service routing.
Key Features
- Clear PVC construction allows visual inspection of flow without disassembly
- Rated to 50 psi maximum working pressure for reliable pressure-side service
- 29 inHg vacuum rating supports suction and transfer applications
- Wide temperature range from -15 degrees F to 158 degrees F
- Compliant with 3A, FDA, and NSF-61 standards for food-contact safety
- 3-inch minimum bend radius maintains hose integrity during routing
Compatibility
Designed as an OEM-style replacement or new-install food and beverage transfer hose for sanitary fluid handling systems requiring 1-1/4 inch ID, NSF-61 and FDA compliant flexible hose.
Installation Notes
Installation should be performed by a qualified technician or licensed plumber familiar with sanitary piping systems and applicable food safety codes. Shut off all fluid supply and relieve system pressure before disconnecting or connecting hose ends. Observe the 3-inch minimum bend radius at all times to prevent kinking and flow restriction. Verify that all fittings and clamps used are rated for the working pressure and are approved for food-contact service.
Technical Specifications
- Inside Diameter: 1-1/4 inches
- Outside Diameter: 1.59 inches
- Overall Length: 100 feet
- Maximum Working Pressure: 50 psi
- Vacuum Rating: 29 inHg
- Minimum Bend Radius: 3 inches
- Minimum Working Temperature: -15 degrees F (-26 degrees C)
- Maximum Working Temperature: 158 degrees F (70 degrees C)
- Material: PVC
- Color: Clear
- Standards: 3A, FDA, NSF-61
- Weight: 0.23 pounds
- UNSPSC Code: 40142012
Standard Information
- Brand: CONTINENTAL CONTITECH
- Manufacturer Part Number: 20013339
