Description

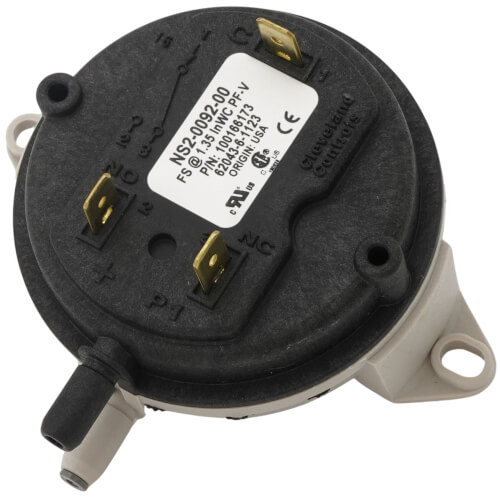

This is an Genuine OEM Lochinvar Air Pressure Switch used in EnergyRite (model ERN/ERL) pool & spa heaters, which monitors combustion airflow and ensures the inducer fan generates enough static pressure before the heater is allowed to ignite. The Air Pressure Switch acts as a safety interlock that verifies proper airflow before allowing the pool heater to ignite. It ensures that dangerous exhaust gases are being safely vented and that there is enough fresh air for clean combustion.
- p/n: PRS3428, PRS2428, 100166258
- Manufacture: Cleveland Controls NS2-0092-00
- Pressure Rating: Operating setpoint = 1.35″ Water Column (W.C.)
- Tolerance Range: +0.05 / -0.03″ W.C.
- Switch Configuration: SPDT (Single Pole Double Throw) ~ features both Normally Open (NO) and Normally Closed (NC) contacts.
- Connection: 1/4″ female spade quick-connect terminals
- Pressure Sample Port: Standard barb fittings for slip-on pressure tubing
