Description

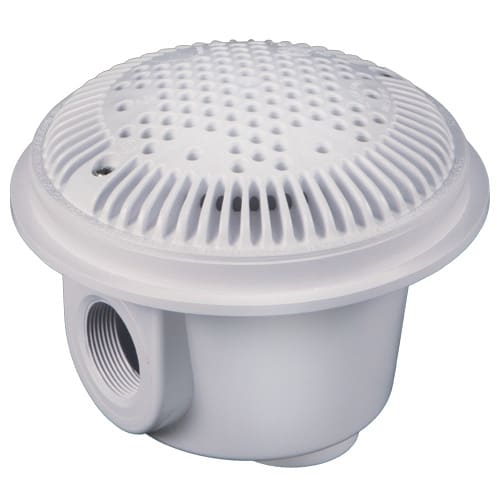

Hayward WG1051AVPAK2 8″ Round Dual Suction Outlet with Anti-Vortex (AV) Grate, 1-1/2″ FIP x 1-1/2″ FIP, White (2 Pack)
Hayward WG1051AVPAK2 is an 8″ round dual suction outlet (main drain) assembly supplied as a 2-pack. Each outlet includes an anti-vortex (AV) grate and dual ports with 1-1/2″ FIP side and 1-1/2″ FIP bottom connections. It’s designed for full outlet replacement or new installation where a complete suction outlet body and compliant cover are needed.
Key Features
- Part Number: WG1051AVPAK2
- Brand: Hayward
- Type: Dual suction outlet / main drain with AV grate
- Quantity: 2 per pack
- Color: White
- Size: 8″ round
- Connections: 1-1/2″ FIP side port x 1-1/2″ FIP bottom port
- Material: ABS (commonly listed)
- Cover Open Area: approx. 8.10 sq in
- Approved Flow (installation-dependent): 125 GPM floor (horizontal) / 72 GPM wall (vertical)
- Compliance: VGB compliant when installed on an approved, compatible sump/frame per manufacturer instructions
Applications
- Pool main drain / submerged suction outlet installations
- New construction or full suction outlet replacement
- Systems needing dual-port plumbing with 1-1/2″ FIP side and 1-1/2″ FIP bottom connections
- Commonly used across concrete, vinyl, and fiberglass pools when matched to the correct Hayward configuration
Installation Notes
- Confirm your sump/frame style, port layout, and mounting orientation (floor vs wall) before ordering.
- Always shut off the pump and relieve suction before servicing any suction outlet/main drain components.
- Use only the correct hardware and tighten evenly so the cover is secured properly.
- Never operate the pool if a suction outlet cover is missing, cracked, loose, or improperly installed.
- If the sump/frame is damaged or screw inserts are stripped, repair/replace the correct components so the cover can be fastened securely.
Related Products
- Hayward WG1051AVPAK2
- Hayward 8″ Suction Outlet / Main Drain Covers
- Hayward WG1052AVPAK2 (2″ FIP x 1-1/2″ FIP) Dual Suction Outlet (2 Pack)
- Hayward WG1054AVPAK2 (2″ FIP x 2″ FIP) Dual Suction Outlet (2 Pack)
- Main Drain Cover Screws & Hardware
- Pool Suction Outlet Covers
Maintenance Tips
- Inspect suction outlet covers regularly for cracks, warping, looseness, or missing hardware.
- Replace any damaged cover immediately and keep all fasteners properly secured.
- Keep the outlet area clear of debris to maintain designed flow and reduce stress on the grate.
- Follow manufacturer replacement interval guidance for suction outlet covers (often referenced as 7 years).
