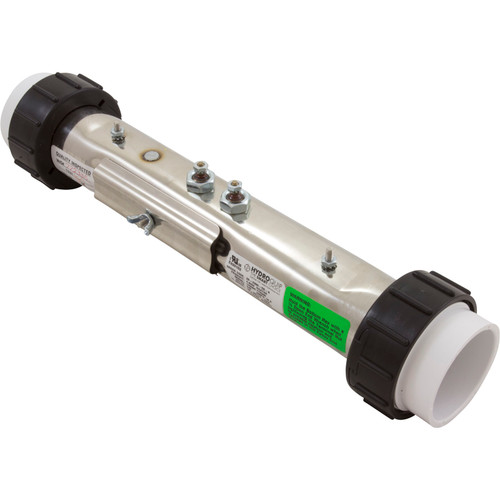

HeaterFloThru CorrectTech Repl12-1/2″x2″230v 4.0kW Gen 26-2300-5S-K
Stainless steel, 2″ x 12-1/2″, 4.0kW/230v replacement heater assembly. This heater has 2 mounting studs, and a pressure switch tap at 0 degrees from the heater terminals. Heater gaskets, split nuts and tailpieces are included. Pressure switch not included – see 3029 if needed.
| Housing Configuration | Straight |
| Heater Length | 12-1/2″ |
| Lead End Terminal Location | 5-3/4″ |
| Threaded Tap Orientation | 12 O`Clock |
| Threaded Tap Location | 3-3/4″-From-Leading-End |
| Kilowatts | 1.0kW, 4.0kW |
| Voltage | 115v, 230v |
| Sensor Stud Location | 5″ |
| Sensor Stud Orientation | 3 O`Clock |
| Mounting Stud Type | Fixed |
| Heater Size | 2″ |
| Heater Application | Correct-Tech |
