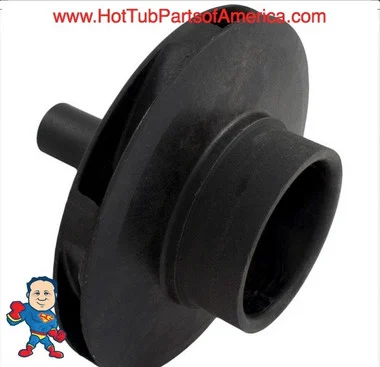

StaRite/Pentair Dura-Glas II/MaxEPro Pump Impeller for a 1.5HP Pool Pump… Please check your impeller against the measurements below..Closed face impeller made for the Dura-Glas II and MaxEPro pool pumps by Sta-Rite/Pentair. Rated at 1.5hp, it is used in a Dura-Glas II and/or MaxEPro pump body, and must be installed on a 1.5hp (or greater) square flange motor with a threaded shaft. Shaft seal sold separately Click for Seal
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4-3/4″ |
| Vane Width ID | 5/16″ |
| Eye Diameter OD | 2-3/8″ |
| Eye Length | 15/16″ |
| Impeller Width OD | 1/2″ |
| Seal Seat Depth | 7/8″ |
| Shaft Length | 1-3/16″ |
| Shaft Diameter OD | 3/4″ |
| Seal Seat Diameter OD | 1-1/8″ |
| Manufacturer | Sta-Rite/Pentair |
| Pump Application | Dura-Glas |
