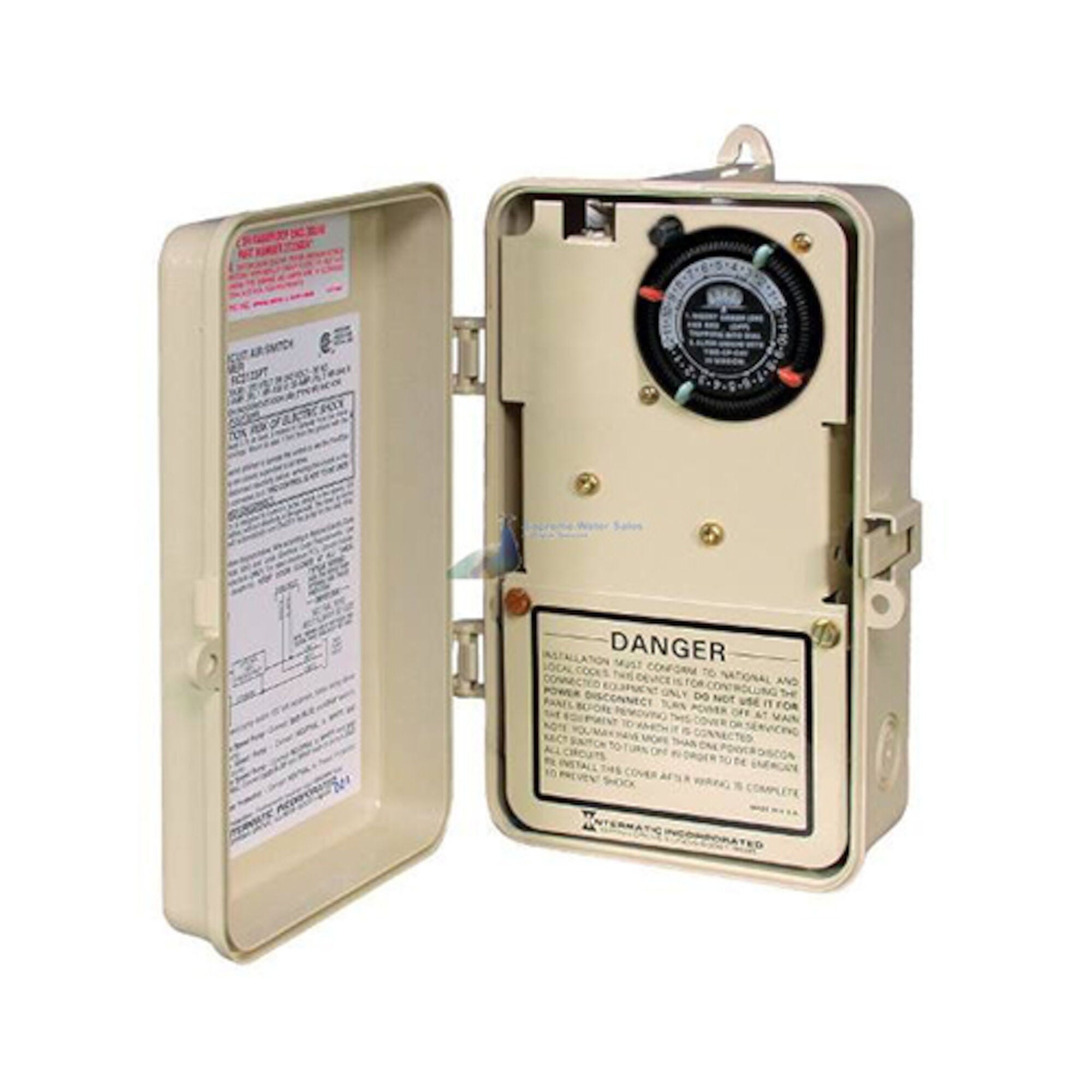

Intermatic Spa Control No Heater RC2343PT
Safe, reliable air-switch spa control with 24-hour programmable timer.
Product Overview
The Intermatic RC2343PT Spa Control System provides safe and convenient remote operation of pumps and motors near water — without requiring electricity at the control point.
This multifunction air-switch system includes a 24-hour mechanical timer that allows multiple ON/OFF settings per day, ideal for managing spa or pool equipment efficiently.
The system features a Type 3R plastic enclosure for indoor or outdoor installation and supports air-activated switching up to 100 feet away (with the optional RC117 air hose, sold separately).
Key Features
-
Multifunction air-switch system with 24-hour timer
-
Provides safe control near water without electrical exposure
-
Multiple ON/OFF events per day for flexible scheduling
-
Operates one or two separate loads
-
Type 3R plastic enclosure for indoor/outdoor use
-
Compatible with RC117 flexible air hose (up to 100 ft)
-
Requires a neutral connection
-
Designed for motor and pump control
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Intermatic |
| Model Number | RC2343PT |
| Multifunction Air Switch with 24-Hour Timer | |
| System Voltage | 120/240 VAC, 60 Hz |
| Motor Rating | 1 HP @ 120 V / 2 HP @ 240 V |
| Resistive Load Rating | 20 A @ 120/240 V |
| Switch Type | 4-Function |
| Enclosure Type | Type 3R Plastic (Indoor/Outdoor) |
| Air Tube Max Length | 75 ft (22.86 m) |
| Product Dimensions (H × W × D) | 9 5/8″ × 5 3/4″ × 3 5/8″ |
| Country of Origin | Mexico |
| Certifications | cCSAus Listed |
| Warranty | 1-Year Limited |
| Category | Spa Control Systems |
