Description

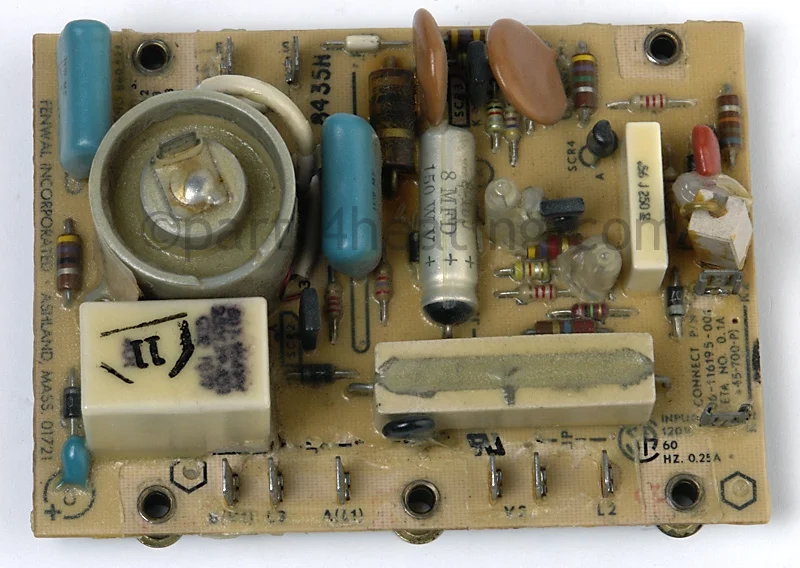

Fenwal 05-149009-005 Ignition Control, Direct Factory Replacement
Technical Specification
SPECIFICATIONS
Control Board (Models Available)
- 120 VAC valve relay, local sensing.
- Isolated valve contacts, local sensing.
- 120 VAC valve relay, remote sensing.
- Isolated valve contacts, remote sensing.
| Input Voltage: | 120 VAC, 60 Hz, nominal. |
| Current Drain: | 50 mA (175 mA to 250 mA momentarily during ignition). |
| Ambient: | 40 to 140 deg. F Operating. |
Gas Valve Relay
Contact Current Ratings:
- Common relay output 120 VAC 5 amps
- Isolated valve contacts
- 24 VAC 5 amps
- 120 VAC 2.5 amps
- 240 VAC 1.2 amps
| Timing | (Trial-for-ignition): 3.3 seconds,4.7 seconds, 10 seconds |
| Electrodes | 22-100000-XXX*: Gap; 0.125 in.0.031 in.Last three digits designate configuration. |
| Lead Wire | High Voltage, 05-125978-0XX** (Ambient: 65 deg. F to 450 deg. F ) |
|
CONTROL CONFIGURATION |
|
|
