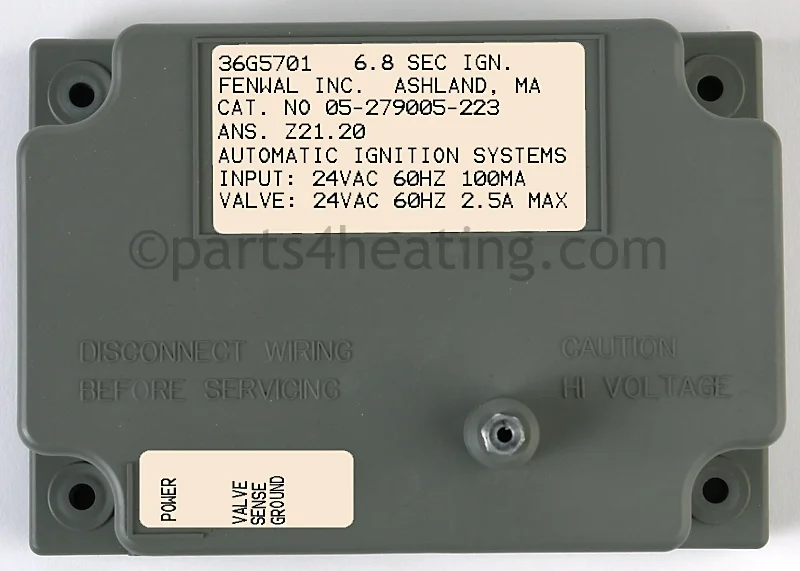

Fenwal 05-279005-223 24VAC Direct Spark CSA ignition control module.This control is no longer available.A Fenwal direct replacement will be supplied.
Technical Specification
SPECIFICATIONS
| IGNITION CONTROLSWith Mitt Without tate | |
| PRE-PURGE DELAY TIME: | 15 seconds 30 seconds |
| TRIAL FOR IGNITION. (Flame Establishing Period) Nominal; NOTE: lockout occurs after three purge and trial for ignition periods. | 3.3 seconds 4.7 seconds 5.6 seconds 6.8 seconds 10.0 seconds 12.0 seconds |
| IGNITION MEANS: | Interrupted |
| FAILURE RE-IGNITION-TIME: | Less than .8 seconds |
| INPUT VOLTAGE: | 24VAC, 60H7, Operating Range 20 to 28 VAC |
| INPUT. CURRENT DRAIN: | 90mA ignitor current drain only (300mA momentary during ignition).Does not include valve power. |
| TYPES OF GAS: | Natural, LP, Manufactured |
| VALVE RELAY CONTACT RATING: | 1.0A continuous @ 24VAC |
| ELECTRODE | Spark Gap 0.125 in.0.031 in. (H.V. to GND) second insulated probe for flame sensing_ Quick connect terminals for lead wire connections. Other terminations and configurations available. Consult factory. |
| LEAD WIRE and CONNECTORS:HIGH VOLTAGE AS5EMBLY | 5mm silicone insulated stranded wire rated at 200 deg. C supplied with 1/4 in. quick connect and spark plug-type terminals. (Wire rated at 250 deg. C available.) Designate length in last two digits of catalog number. Max length, 48 in. Assembled, |
|
CONTROL CONFIGURATION |
|
|
