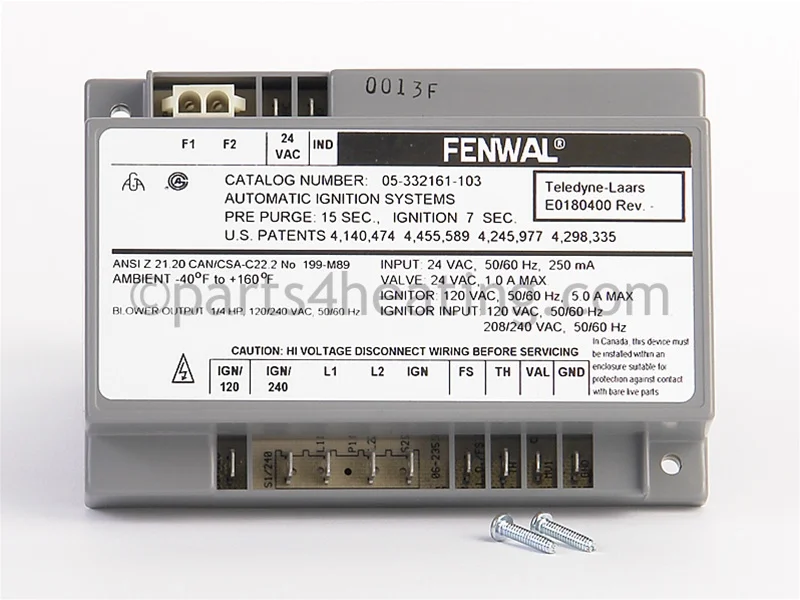

Fenwal 05-332161-103 Ignition ControlThis control is no longer manufactured, you will be supplied with a Fenwal direct factory replacement.Please include the manufacturer and model number of heater this control will be installed.
Technical Specification
SPECIFICATIONS
| Size (H x W x D) | 3.93 x 5.68 x 1.60 in(99.8 x 144.3 x 40.6 mm) |
| Weight | Approximately 5 oz (140 g) |
| Input Voltage | Ignitor: 120, 208/240, or 277 V, 50/60 HzThermostat: 24 V, 50/60 Hz (Operating range20-28 VAC) |
| Input Current Drain | 100 mA, does not include valve power |
| Valve Rating | 24 VAC, 1.0 A maximum, inrush 2 A maximum |
| Ignitor Heat-Up Time | 20 seconds nominal (18-28 seconds)45 seconds nominal (30-60 seconds) |
| Inducer Contact Rating | 8 A at 250 VAC (1/4 hp) |
| Ambient Temperature Limits | -40 to 160F (-40 to 70C) |
| System Check Circuit | Checks valve control circuit and flame rectification circuit before ignition sequence is initiated. |
| Tries for Ignition | Available in one- or three-try versions. |
| Trial-For-Ignition Periods (lockout time) | 1.5, 3.0, 5.0, 7.0, 10.0, or 15.0 seconds, depending on model. |
| Prepurge | None or 15 seconds, depending on model. |
| Postpurge | None or 45 seconds, depending on model. |
| Retry for Ignition | Loss of flame will result in one retry for ignition. (Two retries on three-trial-for-ignition model.) |
|
CONTROL CONFIGURATION |
|
|
Inducer |
Inducer With Postpurge |
|
Sense |
120/208/240 VAC, Remote Sense |
|
Tries for Ignition |
Three Tries For |
|
Connectors |
With Quick Connect Connectors |
|
Prepurge |
15 Second Prepurge |
|
Heat-up |
20 Second Heat-up |
|
Tries for Ignition |
7.0 Second TFI |
