Description

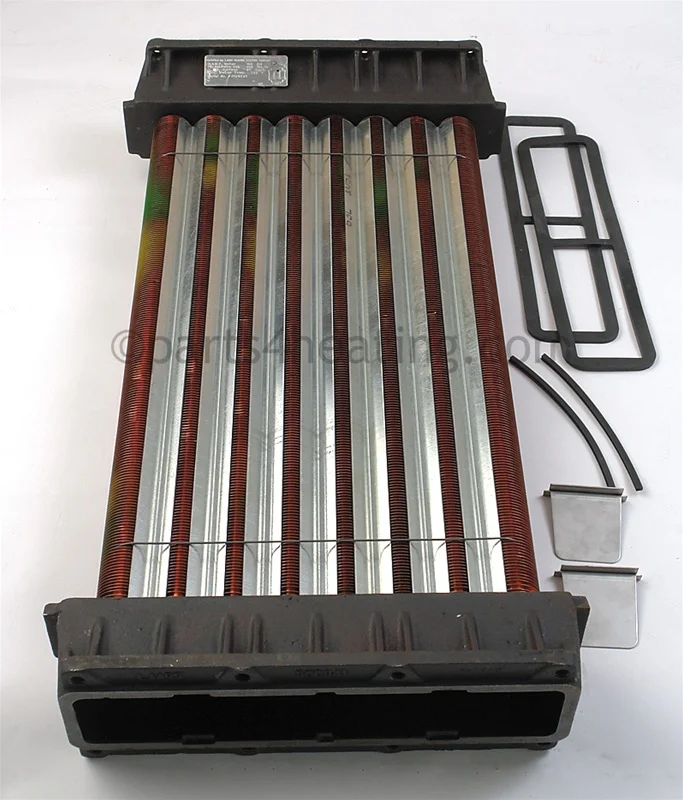

Teledyne Laars 10534701 CopperHeat Exchanger, 8 Tube Assembly, 500
Used on the following models:
HH0500, HH500, HH-500, PH0500, PH500, PH-500, VW0500, VW500, VW-500, PW0500,
PW500, PW-500, IW0500, IW500, IW-500, AP0500, AP500, AP-500, MT0500, MT500,
MT-500, B40500, B4500, B4-500.
Technical Specification
Mighty Therm, Tube Assembly, Indoor Boiler (8 Tubes), 500, Laars Code Compliant ASME Tube Assemblies, Built in accordance w/the requirements of the ASME Boiler and Pressure Vessel Code, Copper tubes and glass-lined tubs, ideal for hydronic or other closed loop, low oxygen content systems. Performs well w/normal water (7.5 to 17 grains hardness) in volume water applications. Length 33” Width 16” Height 5.5” Fits Models: AP0500, AP0500IN09C1PCJX, AP0500IN09C1PCXX, AP0500IN11C1QCXX, HH0500IN09K1ABCQ, HH0500IN09L1ACLW, HH0500IN11K1CCXX, IW0500, PH0500IN09C1ACJX, PH0500IN09K1ACJX, PH0500IN11K1CCXX, PH0500IP09K1AAJX, PW0500IN09C1ACWF, PW0500IN09C1ACXX, PW0500IN09K1ACCW, PW0500IN09K1ACJX, PW0500IN09K1ACXX, PW0500IP16C1CCHX, VW0500IN09K1ACNA, VW0500IN09K1ACNB, VW0500IN11K1CCTC
