Description

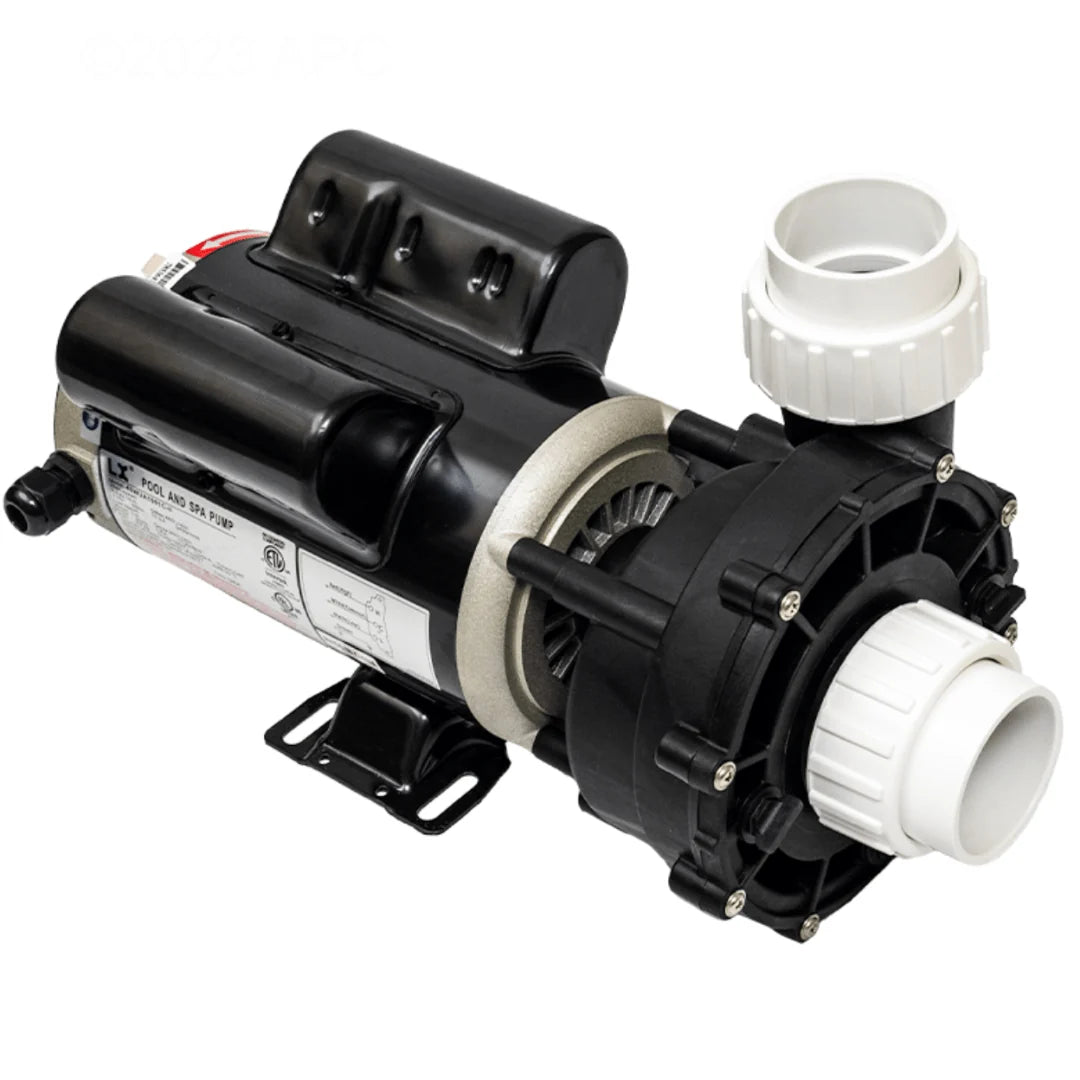

This 1 HP dual-speed spa pump is designed for hot tub and spa water circulation and jet applications. Operating at 115V, it features a 48-frame motor, 2-inch intake and discharge connections, and a side-discharge wet end. The two-speed motor operates at 10.3/3.8 amps, providing high- and low-speed operation for compatible spa systems. It can also serve as a replacement for existing pumps with matching electrical, plumbing, and dimensional specifications.
━━━━━━━━━━━━━━━━━━
Key Features
• 1 HP spa and hot tub pump
• 2-speed, 115V motor configuration
• Rated at 10.3/3.8 amps
• LX48 frame motor
• 2″ MBT intake and 2″ MBT discharge
• Side-discharge wet end configuration
━━━━━━━━━━━━━━━━━━
Product Overview
The 10-48WUA1001 is part of the LX 48WUA series of spa jet pumps and uses the 48WUA1001C-II pump configuration. Its two-speed motor allows compatible spa controls to operate the pump at different speeds for circulation and higher-flow jet operation.
The pump uses 2-inch MBT connections on both the intake and discharge and has an adjustable side-discharge configuration. When using this model as a replacement pump, confirm the existing unit’s 115V supply, 1 HP rating, 10.3/3.8A electrical requirements, 48-frame configuration, and plumbing connection orientation before installation.
