Description

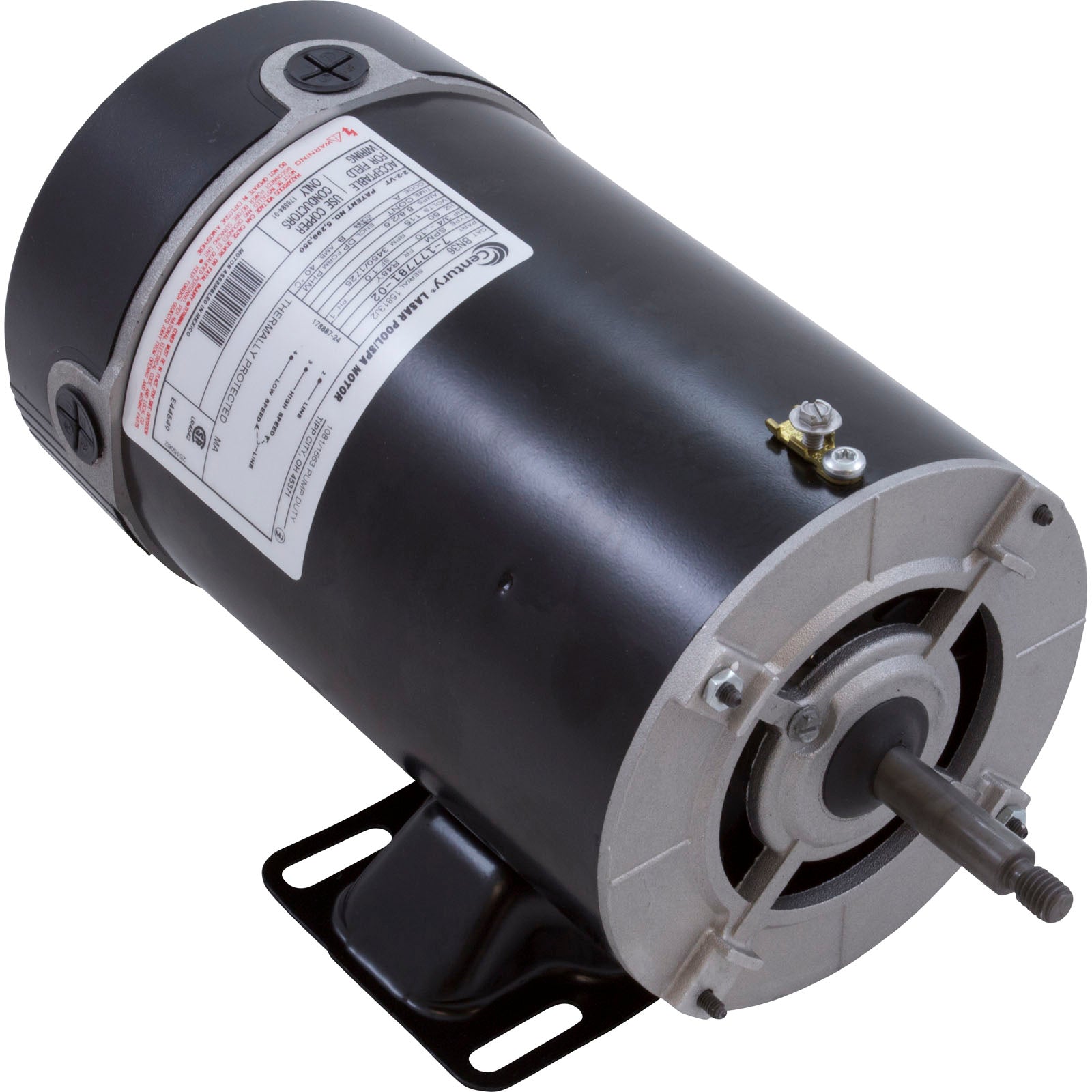

Motor, Century, 0.75 Horsepower, 115v, 2 Speed, 48 Frame
| CAT: BN36 MODEL: 177781 TYPE: SPM FR: R48Y HP: SF: PH: 1 HZ: 60 RPM: 3450/1725 ROT: CCWPE |
VOLTS: 115 AMPS: 8.8/2.6 MAX AMPS: SF AMPS: TIME: CONT ENCL: ODP THERMALLY PROTECTED FORM: CODE: Y INSUL CLASS: B AMB.: 40 |
- 12 & 3 O’clock Conduit Entries
- 40°C Ambient • Class B Insulation
- Rotation: CCW Pump End
- Through Bolt Mount
- 48/56 Base Mounting
- 3-1/2” Shaft Height
- Four Thru Bolts on a 5.146 Bolt Circle
