Description

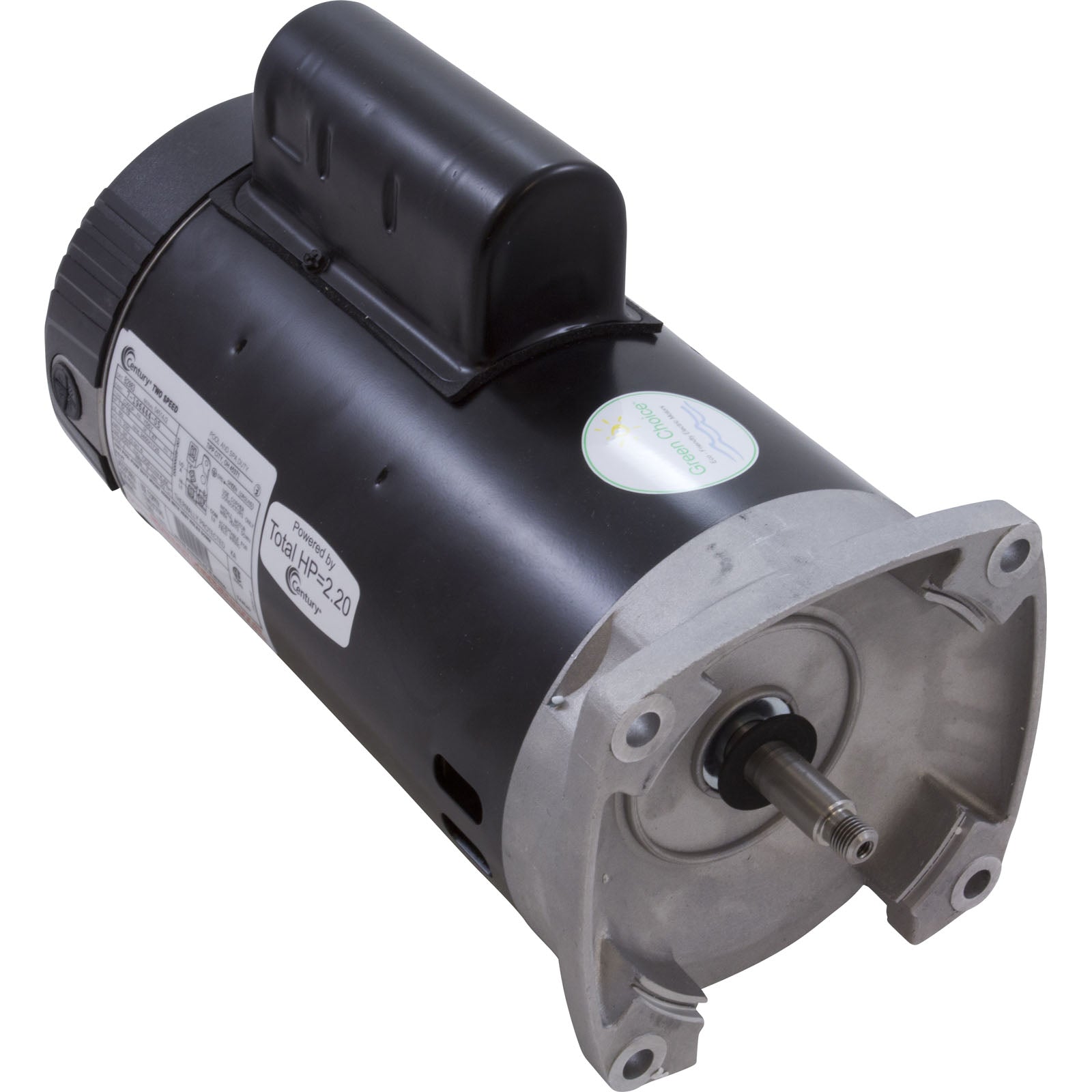

Motor, Century,1.5hp,230v,2-Spd,56Yfr, SQFL,EE
| CAT: B2983 MODEL: 196444 TYPE: CXCP FR: Y56Y HP: 1.5/.19 SF: 1.47 PH: 1 HZ: 60 RPM: 3450/1725 ROT: CCWPE |
VOLTS: 230 AMPS: MAX AMPS: SF AMPS: 10.0/1.6 TIME: CONT ENCL: ODP THERMALLY PROTECTED FORM: CODE: J INSUL CLASS: F AMB.: 50°C |
- Ball Bearing
- 50°C Ambient
- Rotation: CCW Pump End
- Class B Insulation
- 303 Stainless Steel Shafts
- High Efficient High and Low Speed
- Open Dripproof
- Permanent Split Capacitor
- Single Phase
