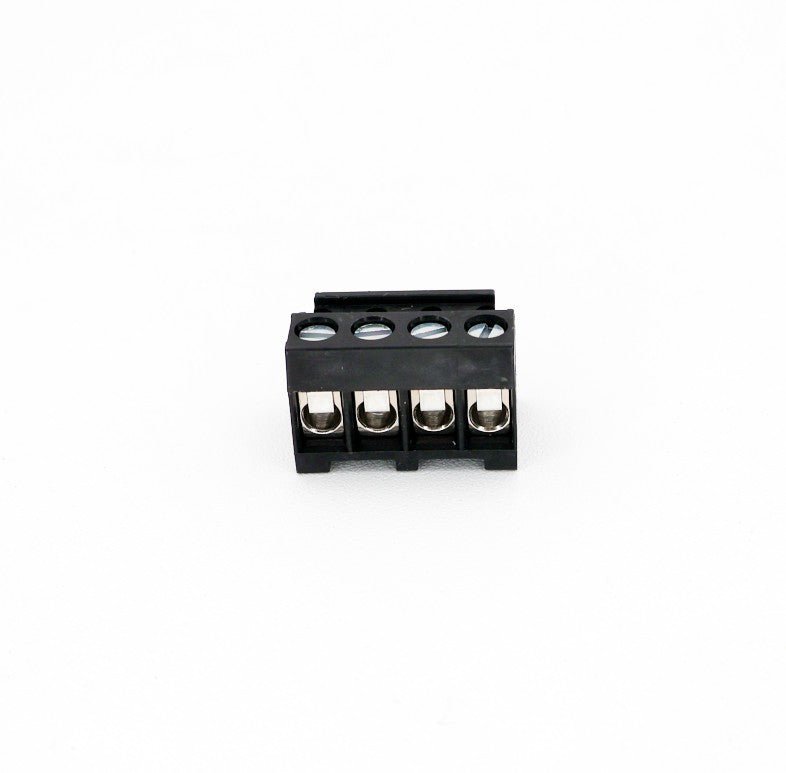

Pentair 8023304Z 4-Position Plug-In Screw Terminal (Terminal Block)
The Pentair 8023304Z is a 4-position plug-in screw terminal (terminal block) used for low-voltage wiring connections on compatible Pentair automation and pump communication systems. It provides four screw-clamp terminals for secure wire termination and a plug-in connector body that mates with the receiving header on supported boards/equipment.
Key Details
- Manufacturer: Pentair
- Part Number: 8023304Z (often referenced as 8023304)
- Type: Plug-in screw terminal / terminal block
- Positions: 4
- Use: Low-voltage wiring connections (commonly used for RS-485 style communication wiring on supported systems)
Common Uses
- Replacing a missing, cracked, or damaged 4-position plug-in terminal on compatible Pentair automation/control systems
- Restoring a secure communication/wiring connection where the original terminal no longer clamps wires reliably
- Service replacement when a terminal is corroded, stripped, or intermittently disconnecting due to poor clamping
Why It Matters
- Helps prevent intermittent communication issues caused by loose or oxidized wire terminations
- Makes service easier by allowing wiring to remain in the plug while disconnecting/reconnecting at the equipment header
- Provides a clean, organized termination point for 4-conductor low-voltage wiring runs
When to Replace
- Screw heads are stripped or will not tighten
- Terminal body is cracked, heat-damaged, or deformed
- Wires pull out easily or must be over-tightened to hold
- Intermittent pump/automation communication or erratic behavior traced to a loose terminal connection
Installation Notes
- Turn off power to the equipment at the breaker before servicing any control system or pump wiring.
- Move one wire at a time from the old terminal to the new terminal to preserve wire order.
- Use clean, properly stripped conductors; avoid nicking strands on stranded wire.
- Tighten screws firmly so the wire cannot move, but do not overtighten to the point of stripping the terminal.
- After installation, gently tug each wire to confirm it is clamped securely before restoring power.
Maintenance Tip
If you service the equipment regularly, recheck low-voltage terminal screws once or twice per season. Vibration and thermal cycling can loosen connections over time, which can cause intermittent communication issues that mimic equipment failure.
