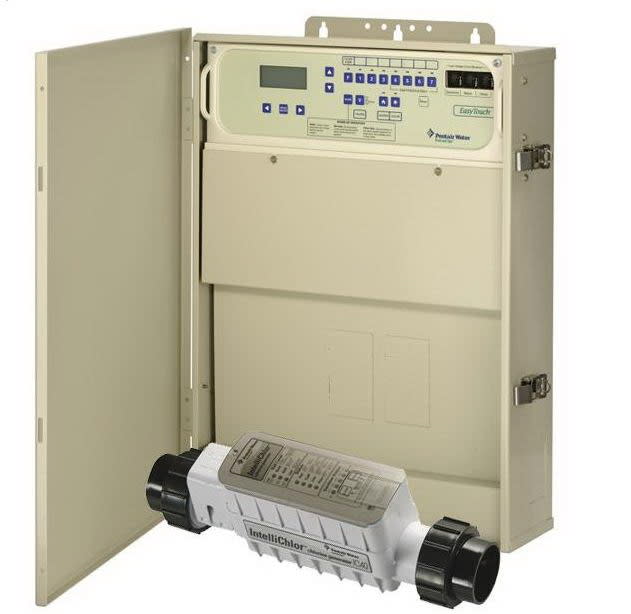

Pentair LoadCenter 8Psc Ic40 EasyTouch Single | 520705
The Pentair LoadCenter 8Psc Ic40 EasyTouch Single (520705) is a pool-centric automation load center panel designed to provide centralized power distribution and control logic for your pool equipment. This version includes the EasyTouch 8Psc load panel with an Ic40 controller for basic automated functions and sequencing, making it ideal for residential pool systems without integrated salt-chlorination or extensive actuator requirements.
What This Product Is For
This EasyTouch 8Psc LoadCenter is engineered for pool systems that need reliable automatic control over pumps, lights, and other essential equipment. It combines breaker space and control logic in one panel that supports scheduling, timed operations, and equipment sequencing. The Ic40 controller provides automated control without the need for additional automation modules.
Features & Benefits
- EasyTouch 8Psc load center with built-in Ic40 automation controller
- Controls key equipment like pumps, lights, and auxiliaries with schedules and logic
- Programmable run times improve energy efficiency and reliability
- Designed for pool-only automation without salt chlorination or actuator packs
- Durable panel construction for dependable outdoor equipment pad use
Installation Notes
- Install the load center in a weather-protected, ventilated equipment area per manufacturer guidelines
- Connect all pool equipment circuits (pump, lighting, etc.) to the designated breakers and controller outputs
- Program schedules and control logic using the Ic40 interface
- Ensure proper grounding and bonding per local electrical and pool codes
Maintenance Tips
- Inspect breaker connections periodically for corrosion or loosening
- Review and adjust schedules seasonally to match usage patterns
- Keep the equipment pad area clean and free of debris
- Check controller operation during routine service to confirm normal performance
