Description

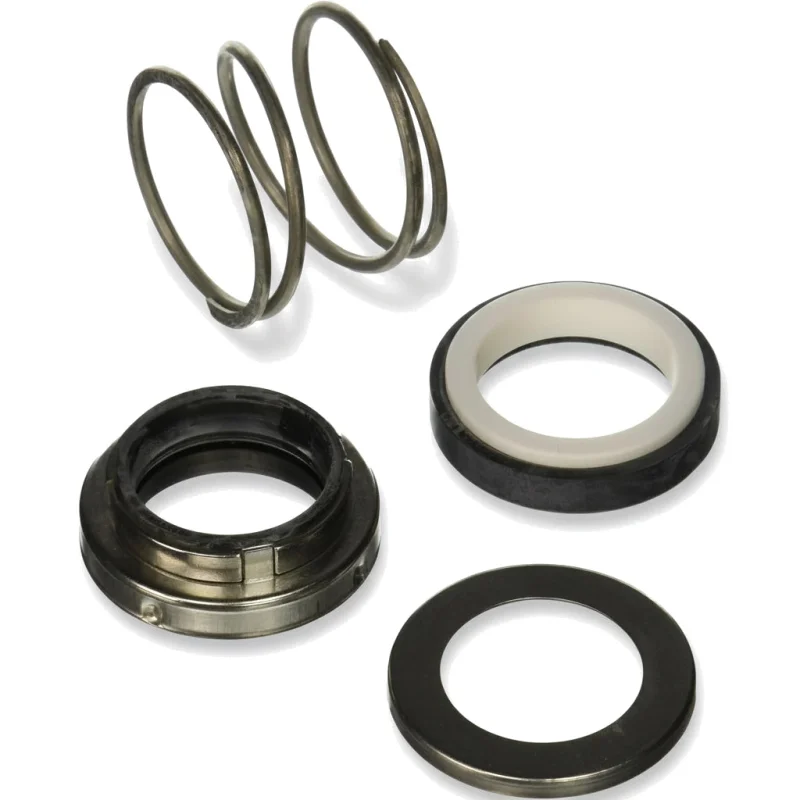

The Pentair Mechanical Shaft Seal (S32014) is the OEM replacement shaft seal for the Sta-Rite CSPH and CCSPH Series commercial pumps specifically for all non-20 HP models in that series.
What It Does
The mechanical shaft seal forms a watertight barrier between the pump’s wet end and the motor, preventing water from migrating along the motor shaft into the motor housing. A failing shaft seal is typically the first sign of a wet-end leak water weeping from the seal plate area indicates the seal faces have worn or separated and the seal requires immediate replacement to prevent motor damage.
Specifications
| Pentair Part Number | S32014 |
| Part Type | Mechanical Shaft Seal |
| Quantity Included | Each (1) |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CSPHK-1421 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CCSPHK-1421 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CSPHK3-1422 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CCSPHK3-1422 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CSPHL-143 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CCSPHL-143M | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CSPHL3-1431 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CCSPHL3-1431 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CSPHM3-1441 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CCSPHM3-1441 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CSPH2K3-142 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CSPH2L3-143 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CCSPH2L3-143 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CSPH2M3-144 | Non-20 HP models only |
| Pentair (formerly Sta-Rite) | CSPH/CCSPH Series Commercial Pump | CCSPH2M3-144 | Non-20 HP models only |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment’s manual or on the original part itself before ordering.
Pro Tip
S32014 is specified for non-20 HP models in the CSPH/CCSPH series confirm your pump’s horsepower rating before ordering, as the 20 HP configuration uses a different seal. When replacing the shaft seal, inspect the seal plate and motor shaft for scoring or corrosion; a damaged shaft surface will cause premature failure of the new seal regardless of part quality. Shaft seal replacement on commercial pump equipment should be performed by a qualified pool service technician.
