Description

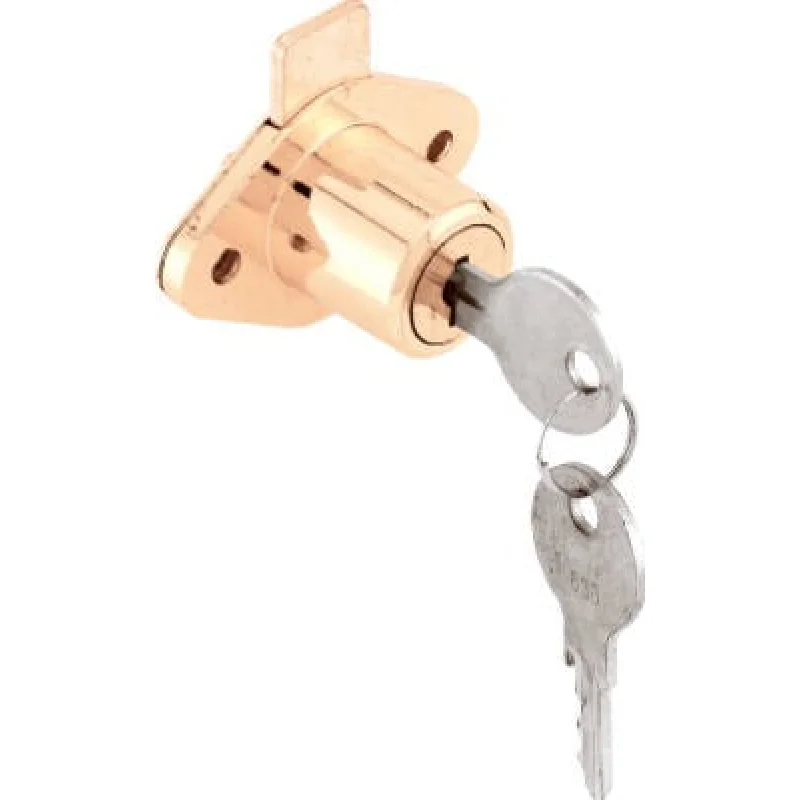

The PRIME LINE PRODUCTS CCEP 9947KA is a brass plated drawer and cabinet lock designed for light-duty residential and commercial cabinetry applications. The unit features a plated die cast housing with a cylinder length of 7/8 inches and a cylinder diameter of 7/8 inches, providing a compact footprint suited for standard drawer and cabinet face installations. The bolt throw measures 5/16 inches. Each package includes one lock, two keys, and installation screws. The cylinder uses the Yale Y-13 keyway and is keyed alike to KA611, making it a practical choice for multi-lock installations requiring a single key to operate multiple locks.
This lock is intended for drawer and cabinet applications in residential and light commercial settings. It is well suited for utility cabinets, shop drawers, office furniture, and similar enclosures where a low-profile cylinder lock is required. The keyed-alike configuration to KA611 allows facilities or service professionals to standardize key access across multiple cabinet locations without carrying separate keys for each lock. Each package contains 20 units, making it a convenient option for batch installations.
Key Features
- Brass plated finish over a plated die cast housing for corrosion resistance in indoor environments
- Cylinder length and diameter each measure 7/8 inches for compact, flush-mount installation
- 5/16 inch bolt throw provides positive locking engagement
- Uses Yale Y-13 keyway for broad key compatibility
- Keyed alike to KA611 one key operates multiple locks in a matched set
- Each unit includes one lock, two keys, and installation screws
Compatibility
Designed as an OEM-style replacement or new-installation cylinder lock for standard drawer and cabinet applications accepting a 7/8 inch diameter cylinder. Keyed alike to KA611.
Installation Notes
Installation is typically performed by a locksmith, finish carpenter, or maintenance technician using basic hand tools. Ensure the cabinet face or drawer front is drilled to the correct diameter before inserting the cylinder. Verify bolt throw clearance within the drawer or cabinet body before finalizing installation. Do not force the cylinder into an undersized bore, as this may damage the die cast housing.
Technical Specifications
- Cylinder Length: 7/8 inches
- Cylinder Diameter: 7/8 inches
- Bolt Throw: 5/16 inches
- Finish: Brass Plated
- Housing Material: Plated Die Cast
- Keyway: Yale Y-13
- Keyed Alike To: KA611
- Package Quantity: 20 units
- Contents per Unit: 1 Lock, 2 Keys, Installation Screws
- Weight: 4.26 pounds
Standard Information
- Brand: PRIME LINE PRODUCTS
- Manufacturer Part Number: CCEP 9947KA
