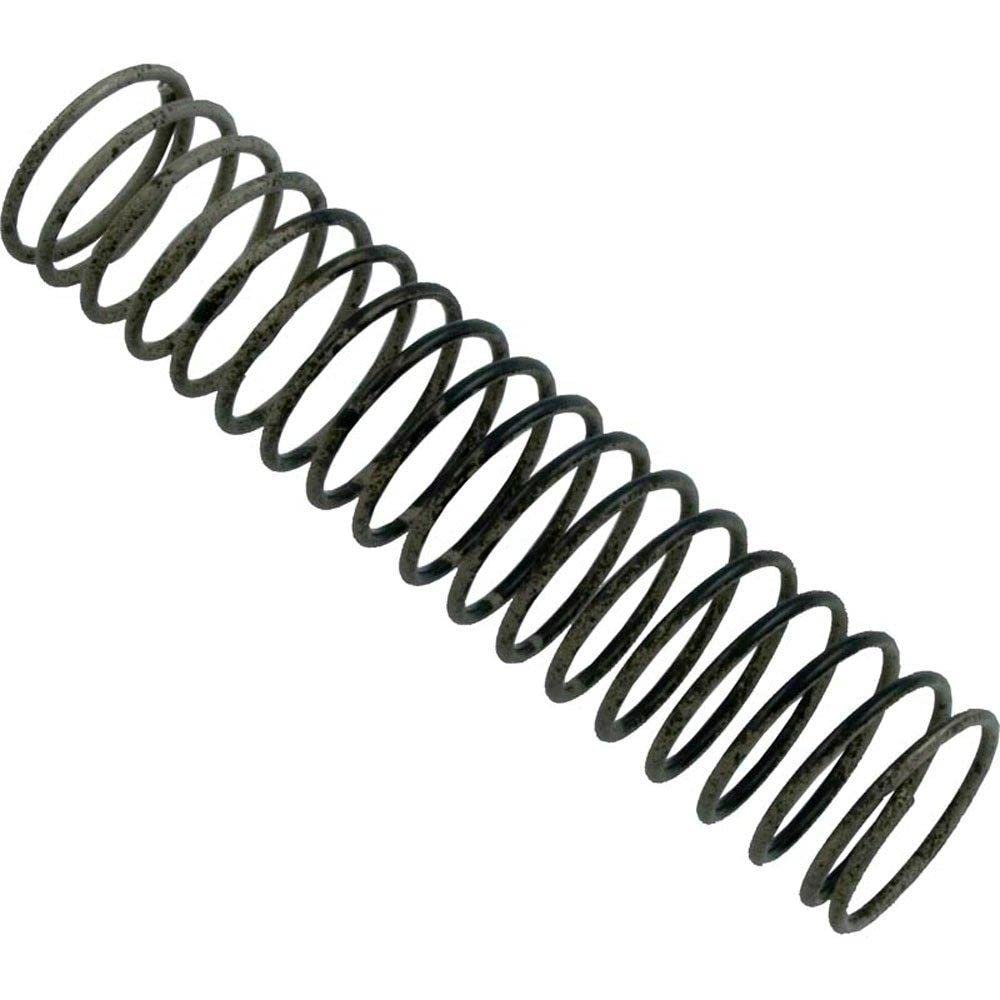

Raypak 013794F – Bypass Spring – Brass Bypass Valve
If the heater is not holding temperature, the bypass valve is no longer modulating flow correctly, or you are seeing condensation and premature scaling in the heat exchanger, a worn or collapsed bypass spring is a common cause. The spring sets the tension on the bypass valve, which controls how much water routes through the heat exchanger versus around it. When it weakens, flow regulation drifts and heat transfer suffers.
Why This Part Matters
Correct bypass tension protects the heat exchanger from thermal shock and condensation. A failed spring lets too much or too little water through the exchanger, which shows up as poor heat output, sooting, or accelerated scale build-up.
Key Features and Specifications
- Raypak manufacturer part number 013794F
- Bypass spring for units fitted with a brass bypass valve
- Fits models 266 through 408 and the R265–R405 series
- For units manufactured prior to 3/5/2017 — units built after that date use the plastic bypass valve spring, part 016196F
- Genuine Raypak OEM replacement
Installation and Fitment Guidance
Shut off the heater and gas supply and relieve system pressure before servicing the bypass assembly. Confirm whether your unit has a brass or plastic bypass valve before ordering — the two use different springs and are not interchangeable. Confirm by manufacturer part number before ordering.
