Description

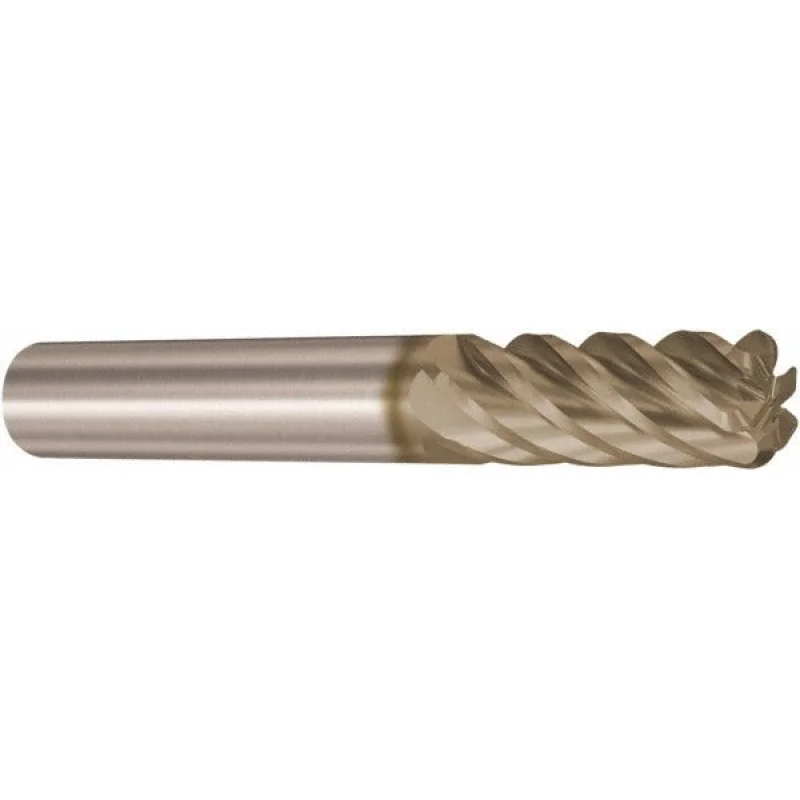

The SECO 03060304 is a solid carbide corner radius end mill designed for high-performance milling in demanding materials including stainless steel and high-temperature superalloys. Part of the SECO JS720 series, it features a 12 mm cutting diameter, a 1 mm corner radius, and six flutes arranged in a right-hand spiral with a high helix angle of 38 degrees. The HXT coating provides thermal and wear resistance suited to the elevated cutting stresses found in M- and S-group workpiece materials. With a 30 mm length of cut and 83 mm overall length, this is a short-reach, single-end, centercutting tool intended for professional machinists and toolroom technicians.
This end mill is configured for roughing operations on stainless steel and superalloys in CNC machining centers. The straight-cylindrical shank at 12 mm diameter mounts directly into standard ER or hydraulic collet toolholders. Its short length-type classification keeps deflection low during aggressive material removal passes. The centercutting geometry allows plunge entry, expanding its utility in slotting and pocket-milling operations common in aerospace, medical, and process-industry component work.
Key Features
- Solid carbide submicron-grade construction for rigidity and edge retention in tough alloys
- HXT coating optimized for stainless steel and high-temperature alloy applications
- Six-flute, right-hand spiral geometry with 38-degree high helix for efficient chip evacuation
- 1 mm corner radius reduces stress concentration and extends tool life at cutting edges
- Centercutting design permits direct plunge entry without pilot drilling
- Short flute length type minimizes deflection during roughing passes
Compatibility
Designed as an OEM-style replacement or direct-fit tool for CNC machining centers accepting a 12 mm straight-cylindrical shank. Optimized for milling stainless steel (ISO material group M) and high-temperature superalloys (ISO material group S).
Installation Notes
Installation should be performed by a qualified machinist or CNC toolroom technician. Secure the shank in a clean, properly sized collet or toolholder to the full recommended gauge-length engagement before spindle startup. Confirm runout with a dial indicator before initiating cuts, as excessive runout accelerates edge wear on multi-flute carbide tools. Always follow the machine tool manufacturer guidelines and applicable shop safety procedures when changing or setting cutting tools.
Technical Specifications
- Mill Diameter: 12 mm (0.4724 inches)
- Number of Flutes: 6
- Length of Cut: 30 mm (1.0000 inches)
- Corner Radius: 1 mm (0.0394 inches)
- Overall Length: 83 mm
- Shank Diameter: 12 mm
- Helix Angle: 38 degrees (High)
- End Mill Material: Solid Carbide (Submicron Grade)
- Coating: HXT
- Flute Direction: Right Hand
- Cutting Direction: Right Hand
- Shank Type: Straight-Cylindrical
- End Type: Corner Radius
- Single or Double End: Single
- Centercutting: Yes
- Coolant Through: No
- Chipbreaker: No
- Material Removal Type: Roughing
- Primary Workpiece Material: Stainless Steel, High Temperature Alloy
- Mill Diameter Tolerance: -0.03 to -0.05 mm
- Corner Radius Tolerance: -0.02 to 0.02 mm
- Shank Diameter Tolerance: h5
- Series: JS720
- Package Dimensions: 3.54 inches (L) x 0.71 inches (W) x 0.71 inches (H)
- Weight: 0.28 pounds
Standard Information
- Brand: SECO
- Manufacturer Part Number: 03060304
