Description

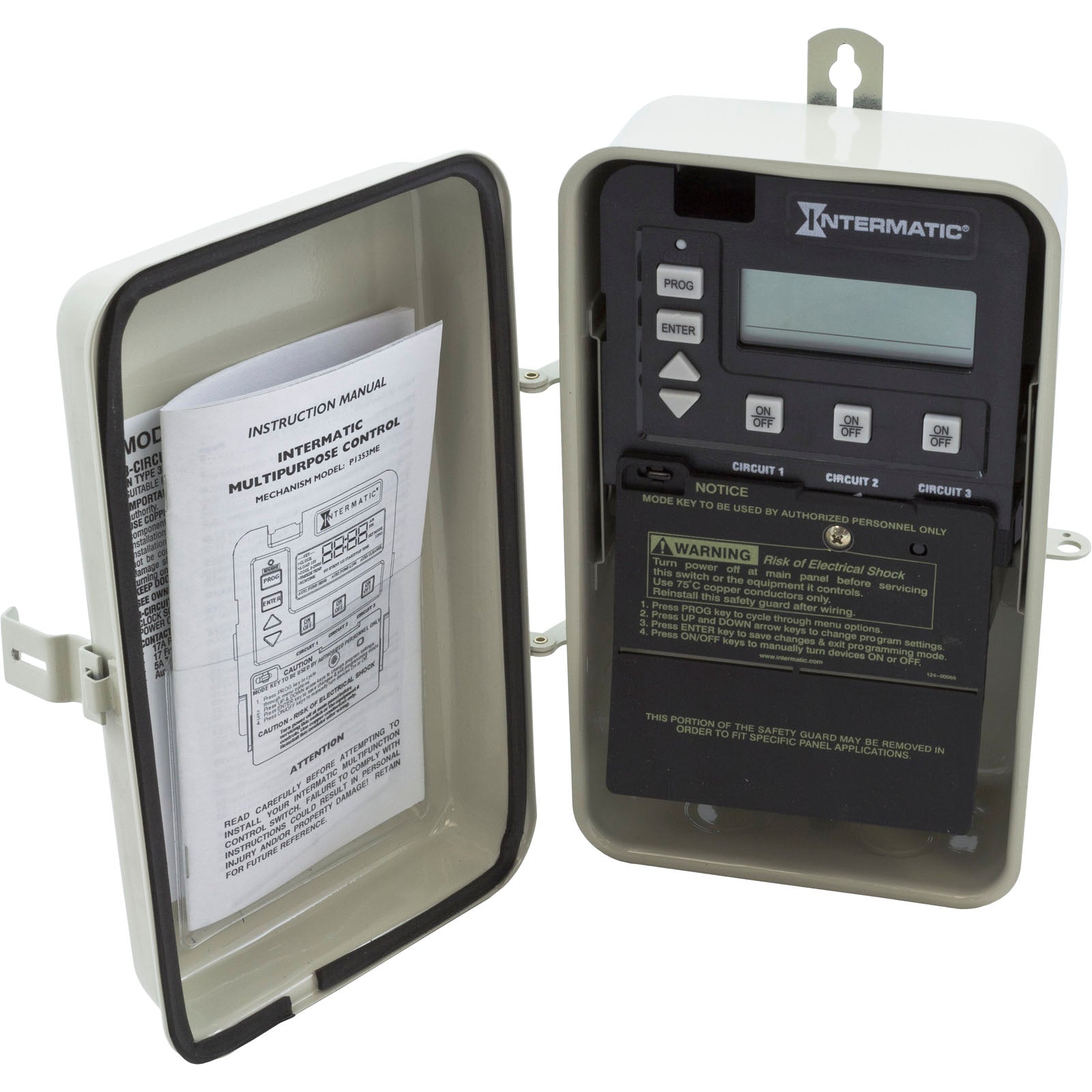

Time Clock, Intermatic PE153, 24 hr, 115v/230v,3PST, Digital
California Residents WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
PE100 Series
P1353ME & NEMA 3R Encolsure with Available Options
- For 1 and 2-speed pumps
- Controls 3 circuits
- 3 ON/OFF events per day
- 7 pre-programmed combinations to choose from
- Add on other pool/spa related evices
Applications:
- Single Speed Pump/Booster Pump Combos
- Two-Speed Pump/Booster Pump Combos
- Pool & Spa Lighting
- Water Features
- Gardens & Fountains
- Landscape Lighting
Specifications:
Enclosure: NEMA 3R rated for Indoor/Outdoor installation in beige finish
“P” suffix models are same dimensions, except made from outdoor grade plastic.
9-3/8″ (23.8 cm) H x 5-1/2″ (14.0 cm) W x 3-5/8″ (9.2 cm) D
Knockouts: Combination 1/2″ to 3/4″ nominal knockouts, one on back and each side of enclosure and two on bottom
Switch Rate (each circuit): 20 Amp Resistive, 120-240 VAC, 50/60 Hz (20 FLA, 96 LRA), 120 VAC, 50/60 Hz (17 FLA, 80 LRA), 240 VAC, 50/60 Hz 5 Amp Tungsten, 120-240 VAC, 50/60 Hz 5 Amp Ballast, 120-240 VAC, 50/60 Hz
Shipping Weight: 3.7 lbs (1.7 kg)
Agency Approval: CSA/C-US
