Description

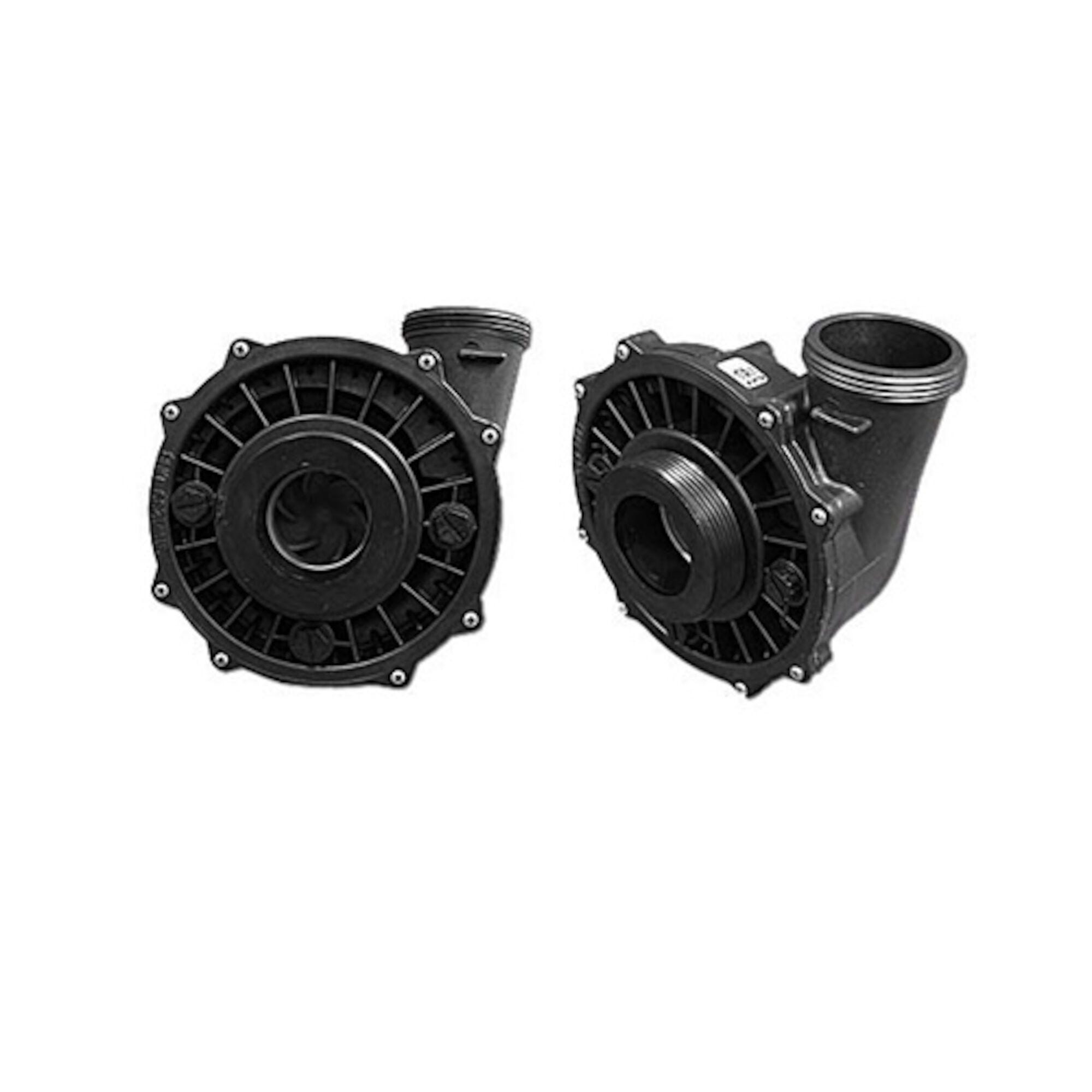

Waterway Executive Wet End 310-1510
Product Overview
As a retailer of hot tub spa parts, I’m featuring this high-capacity Waterway Executive wet end, specifically engineered for powerful 5.0HP, 56-frame motors. This professional-grade component is designed for maximum performance in demanding high-flow applications.
The Waterway Executive wet end (310-1510) showcases Waterway Plastics’ engineering excellence since 1973. This heavy-duty model features advanced hydraulics with a robust 2½” intake and substantial 6½” diameter housing, designed to handle the increased demands of 5.0HP applications while maintaining efficient operation.
Key Features
- Adaptable mounting with 90° rotation flexibility
- High-capacity 2½” intake for maximum flow rates
- Large 6½” diameter wet end for superior pressure handling
- Optimized side discharge configuration
- Industrial-grade construction
- Enhanced hydraulic performance
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Waterway Plastics |
| Model | Executive Series |
| Part Number | 310-1510 |
| Frame Size | 56Y |
| Horsepower Rating | 5.0 HP |
| Intake Size | 2½” MBT |
| Discharge Size | 2″ MBT |
| Discharge Location | Side |
| Housing Diameter | 6½” |
| Rotation Options | 90° increments |
Installation Benefits
- Multiple mounting options with 90° positioning
- Professional-grade plumbing connections
- Standard 56-frame motor compatibility
- Easy maintenance access
Performance Features
- Maximized flow dynamics for high-power applications
- Engineered noise reduction
- Superior head pressure capabilities
- High-volume water circulation
- Professional-grade hydraulic efficiency
Applications
- Ideal for commercial spa systems
- Perfect for high-demand water features
- Suitable for large-scale installations
- Optimized for high-performance 56-frame motors
- Excellent for commercial aquatic facilities
Alternate Part Numbers
- 1-05-0354
