Description

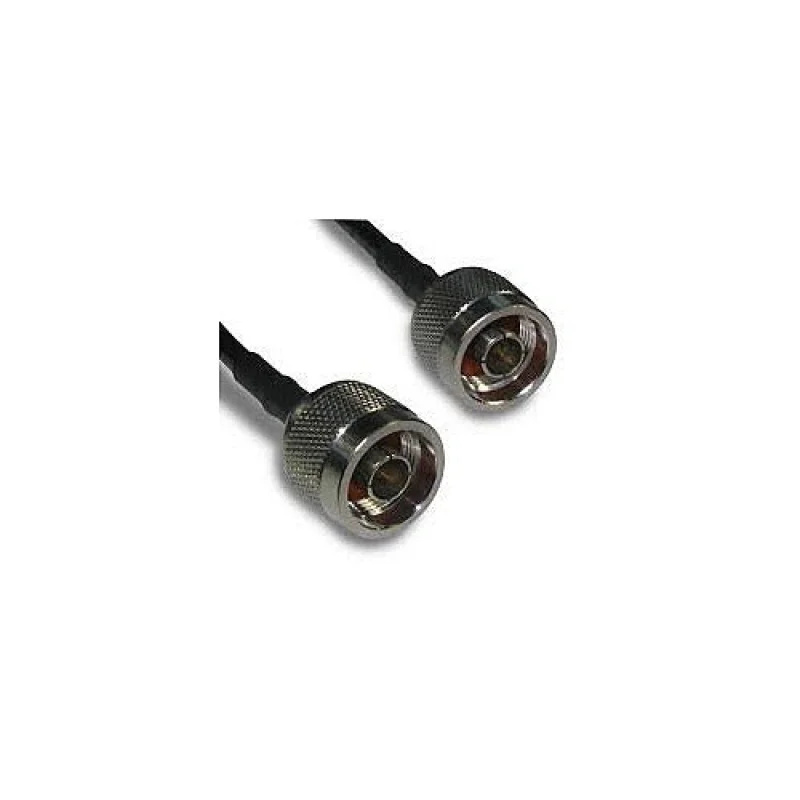

The WEST PENN WIRE CN-NM538X is an N-type RF connector designed for use with 807x series coaxial cable. N connectors are threaded, weatherproof RF interface components used in signal distribution, antenna, and communication cabling systems. This connector provides a secure, low-loss termination point at the end of compatible coaxial cable runs. It is sold as an individual unit and is typically installed by licensed electricians, low-voltage technicians, or communications cabling professionals working on RF, broadcast, or structured cabling systems.
The CN-NM538X is intended for field termination on 807x series coaxial cable, making it suited for antenna feed lines, RF distribution networks, and similar low-voltage signal cabling applications. It fits into both commercial and light industrial environments where a reliable, threaded N-type interface is required at cable endpoints or equipment patch points. This type of connector is commonly found in installations involving signal amplifiers, repeaters, and distribution panels.
Key Features
- N-type threaded interface for secure, weatherproof RF termination
- Designed specifically for termination on 807x series coaxial cable
- Sold individually, one connector per unit
- Suitable for field installation on antenna, broadcast, and RF distribution cable runs
- Threaded coupling provides reliable mating retention in vibration-prone or outdoor environments
Compatibility
Designed for use with WEST PENN WIRE 807x series coaxial cable as stated by the manufacturer.
Installation Notes
Installation should be performed by a qualified low-voltage or communications technician familiar with RF coaxial termination procedures. De-energize and disconnect all RF signal sources before beginning any connector termination work. Use appropriate coaxial stripping and crimping tools rated for N-type connectors to ensure consistent electrical and mechanical performance. Follow applicable local electrical codes and manufacturer cable preparation specifications.
Technical Specifications
- Connector Type: N-type
- Compatible Cable Series: 807x
- Unit of Measure: Each
- Quantity Per Unit: 1
Standard Information
- Brand: WEST PENN WIRE
- Manufacturer Part Number: CN-NM538X
